Panbuster™

LD TOOLBAR

Agriseeder Power Requirements
100-150HP

Power Required

Panbuster Legs
4/6

Legs

Panbuster Chassis Width
650/750mm

Leg Spacing

Panbuster Chassis Width
3.0-4.0m

Working Width

Menu

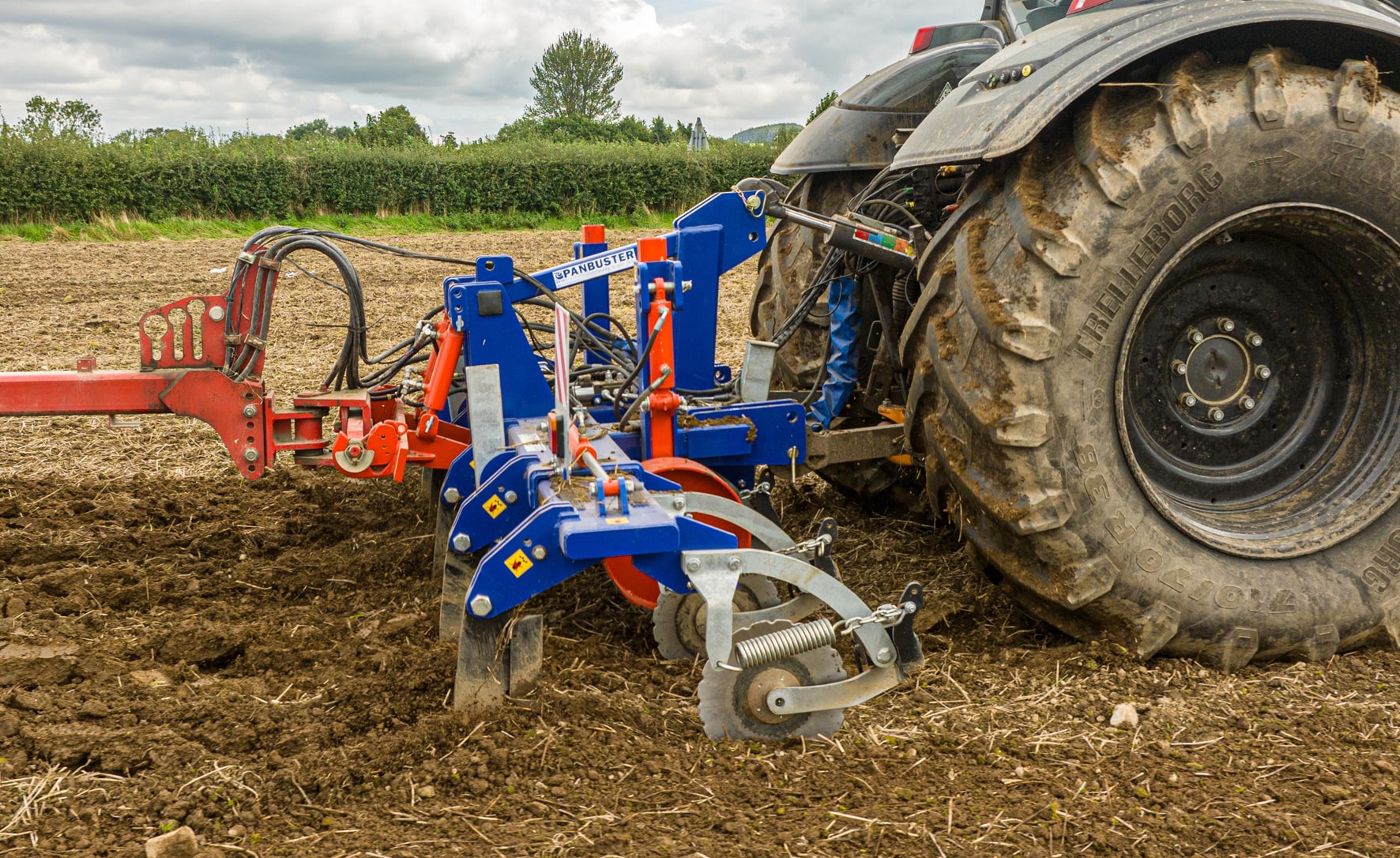

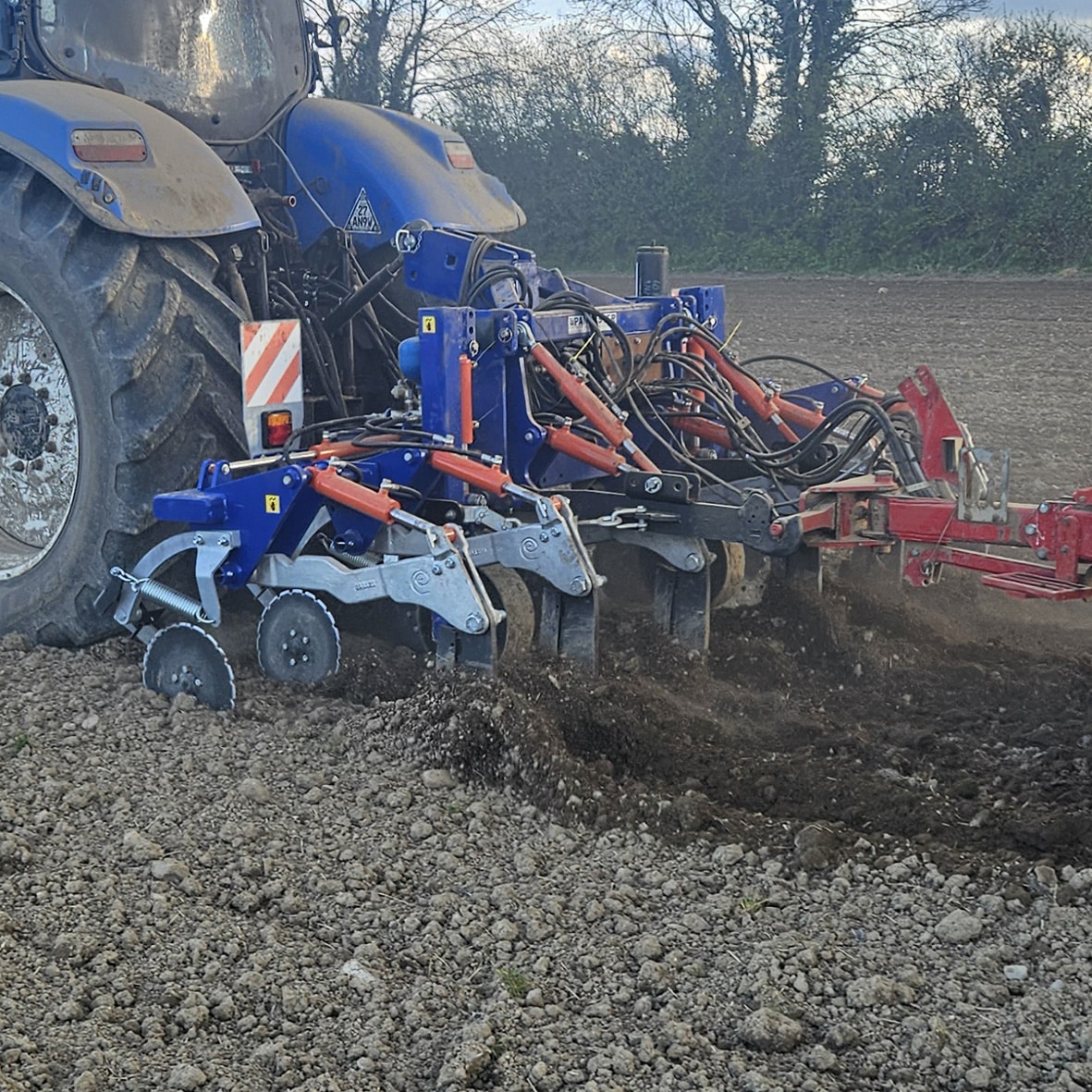

Panbuster™ LD Toolbar

Available in 3m or 4m Telescopic. Ultra low power requirement.

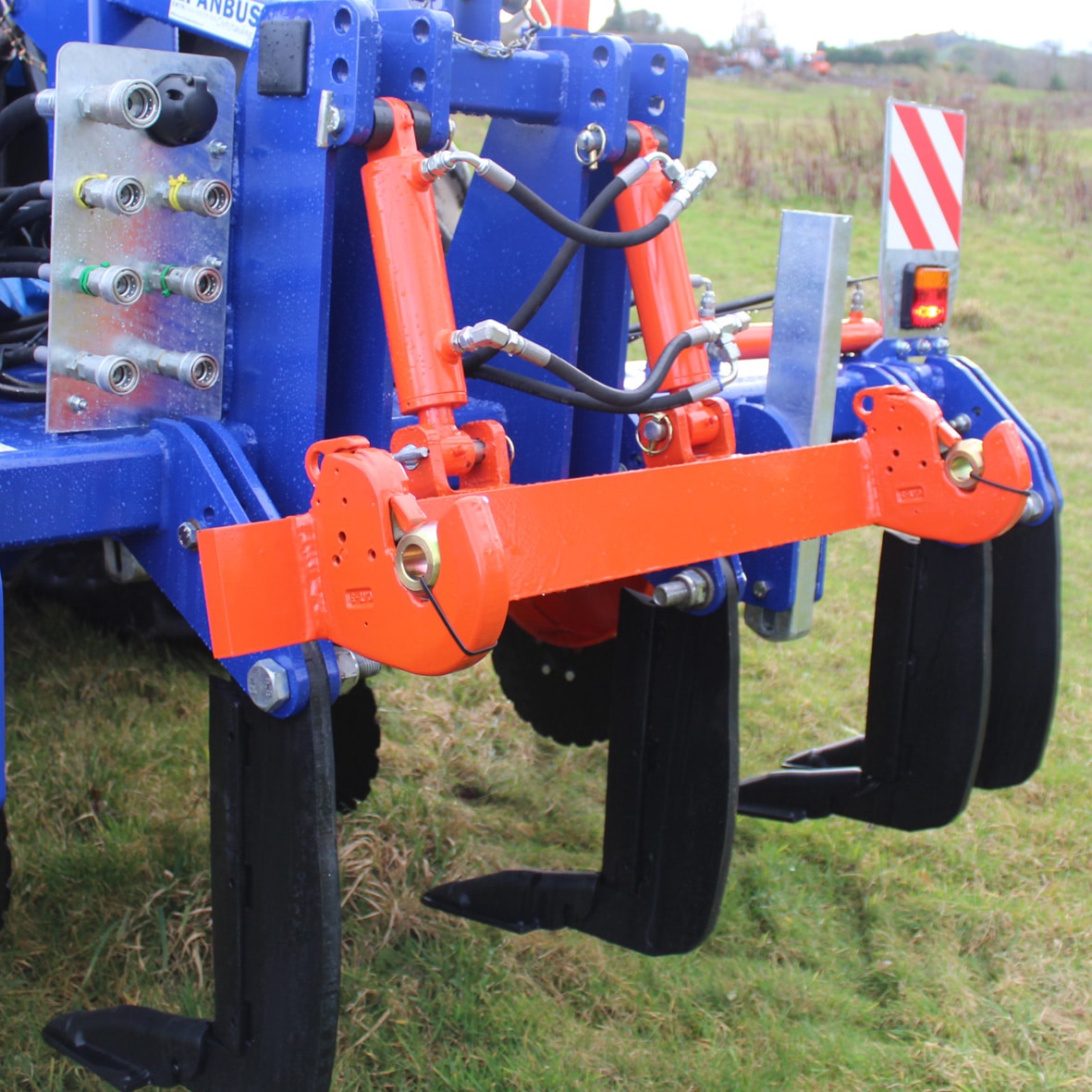

Using our well proven grass disk and leg units, the ultimate in low disturbance is achieved with the lowest HP in its class by far, e.g. 4m Toolbar with trailed drill commonly operated by a 200HP tractor. Hook and pin replacement wear parts and the new patent pending slot-cam tilt function optimises penetration and wear for different soil conditions. Depth wheels allow for the hydraulic adjustment over a 150mm range and the rear linkage or K80 ball hitch compensates for depth adjustment to keep the correct pull height for following implement.

Benefits

Models

Model4 Leg 3m Toolbar6 Leg 4m Toolbar
HP100hp150hp
No. Legs46
Leg Spacing750mm650mm
Working Width3.0m4.0m
Transport Width2.90m2.95m
Weight1200kg1600kg

Panbuster™ LD Toolbar Options

Packers

Choice of toothed packer, rubber roller packer or wedge packer.

Drill fitting kits for seeding units

Panbuster with Seedbox
Drill Kit and Seed Unit

Special Build Variations for Oilseed Rape

Lighting Kit

Panbuster-Lighting-Kit
Lighting Kit

Case Study

Alistair Craig from Northern Ireland worked closely with Erth Engineering to develop a prototype machine based on the Panbuster subsoiler, which became the Panbuster LD Toolbar.

Erth Engineering Alistair-Craig Case Study

Panbuster™ Brochure

Erth Engineering UK
Panbuster Brochure

British Language - PDF file

Erth Engineering France
Brochure Panbuster

Langue Française - Fichier PDF

German Agriseeder Brochure
Panbuster Broschüre

Deutsche Sprache - PDF Datei

Erth Engineering Spain
Folleto de Panbuster

Lengua Española - Archivo PDF

Erth Engineering Netherlands
Panbuster Brochure

Nederlandse Taal - PDF Bestand

Erth Engineering Poland
Broszura Panbuster

Język Polski - Plik PDF

Other Arable Panbuster™ Models

V Form 5 Leg Arable

Available with traditional wing legs or for low disturbance with grass legs and grass disks. Optional rollers and ability to fit Erth micro seeder for seeding applications.

3 LEG Arable

Available with traditional winged legs or grass legs for low disturbance. Standard depth wheels with optional hydraulic kit to facilitate changing depths on the move.
